Balluff Power supplies - Outstanding value > Balluff Power Supplies from £12.

Balluff Power supplies - Outstanding value for money > Balluff Power Supplies from £12.

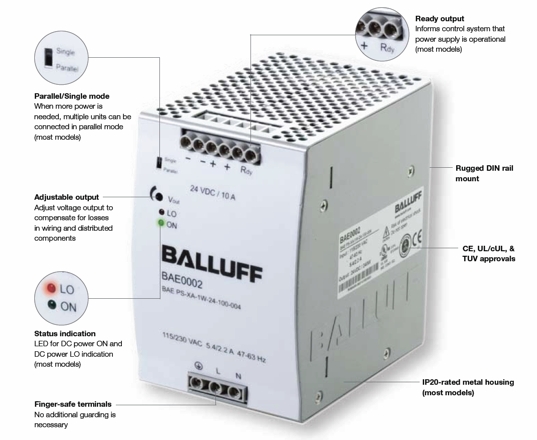

New Balluff power supplies that are reliable very reliable  in the most  demanding industrial automation systems. They all have a primary switch mode, a very reliable AC to DC conversion.

The power supplies have a built in overload and overvoltage protection as well as adjustable voltage and Low Voltage LED, MTBF of 24 years.

The Balluff power supplies have rugged DIN rail mounting and UL,TUV & CE approvals.

There are a range of models to choose from and they have dimensions from 23x90x114mm to 276x126x112mm. All of the power supplies are highly efficient, cost effective and light. The power supplies isolation voltage is 3000ACV. Most of the Balluff power supplies have a -25°c minimum ambient temperature and a maximum +71°c. The ready airput of the power supplies is a DC ok output relay when applicable. They have air free convection for the cooling method. All the products have a start up time of less that 1 second.

The single Phase plastic Housing comes in three types the Balluff BAE-PS-XA-1W-24-007-001, BAE-PS-XA-1W-24-012-002 and BAE-PS-XA-1W-24-025-002.

The BAE-PS-XA-1W-24-007-001.

The BAE-PS-XA-1W-24-007-001 has an input voltage of 90-265 VAC. The current is 0.75 A. The total output power is 18W, the dimensions of the Balluff power supply is 23x90x114mm. It has a switching frequency of more than 100kHz and has a parallel switch mode when used with external diodes. It weighs 0.15kg.

The BAE-PS-XA-1W-24-012-002 has 86% efficiency and a switching frequency of 100kHz. It has a parallel switch mode when used with external diodes. The weight of the product s 0.29kg. The input voltage of the power supply is 85-264 VAC and the current is 1.25A. The output power is 30W and the dimensions of the product is 41x90x114mm

The Balluff BAE-PS-XA-1W-24-025-002 has 89% efficiency and a switching frequency of 100kHz. It has a parallel switch mode when used with external diodes. The product weight 0.36kg. This Balluff product has an input voltage of 2.5A, a total output power of 60W and the dimensions are 41x90x114mm.

The single phase metal housing 24VDC has four different power supplies:BAE-PS-XA-1W-24-038-003, BAE-PS-XA-1W-24-050-003, BAE-PS-XA-1W-24-100-004 and BAE-PS-XA-1W-24-200-005.

The BAE-PS-XA-1W-24-038-003 has an input voltage of 115/230VAC, a current of 3.8A and the total output power is 91.20W. The dimensions of the product are 64x124x116mm.It has efficiency of 85% and a switching frequency of more than 55kHz .It weighs 0.92 kg.

The Balluff BAE-PS-XA-1W-24-050-003 has an input voltage of 115/230 VAC, a current of 5A and a total output power of 120W. The dimensions of the product is 64x124x116mm. It has 86% efficiency, a switching frequency of more than 80Khz and weighs 0.92 kg.

The BAE-PS-XA-1W-24-100-004 has an input voltage of 115/230 VAC, a current of 10A and a total output power of 240W. The dimensions are 86x124x116mm. The product has 89% efficiency and a switching frequency of more than 80kHz. The weight of the product is 1kg.

The BAE-PS-XA-1W-24-200-005 has an input voltage of 90-264VAC. The current is 20A, the total output power is 480W and the dimensions of the product are 175x124x116mm.The product has 89% efficiency and has a switching frequency of more than 80kHz. The item weighs 1kg.

Now we have the 3-Phase metal Housing 24VDC selection. This consists of the Balluff BAE-PS-XA-3Y-24-050-009, BAE-PS-XA-3Y-24-100-006, BAE-PS-XA-3Y-24-200-007 and BAE-PS-XA-3Y-24-400-008.

The Balluff BAE-PS-XA-3Y-24-050-009 has an input voltage of 340-575 VAC, a current of 5A, total output power of 120W. The dimensions of the product are 75x124x112mm. The product has 89% efficiency, a switching frequency of more than 100kHz and has a parallel switch mode when used with external diodes. The weight is 0.8kg.

The BAE-PS-XA-3Y-24-100-006 has an input voltage of 340-575 VAC, a current of 10A and a total output power of 240W. The dimensions of the power supply are 89x124x112mm. This product has high efficiency of 90%. The product has a parallel switching mode and weighs 1.1kg.

The Balluff BAE-PS-XA-3Y-24-200-007 has an input voltage of 340-575 VAC, 10A

current and a total output power of 480w. The dimensions are 150x124x112. This product has a high efficiency of 90%, a switching frequency of more than100kHz and has a parallel switch mode. The product also weighs1.75kg.

The BAE-PS-XA-3Y-24-400-008 has an input voltage of 340-575 VAC, a current of 40A and a total output power of 960w. The dimensions of the power supply is 276x126x112mm. The product weighs 3.2kg. The product has a switching frequency of more than 100kHz.

Require advice, help with selection on a one off or  bulk purchase with volume discount call electroquip for Balluff power supplies
