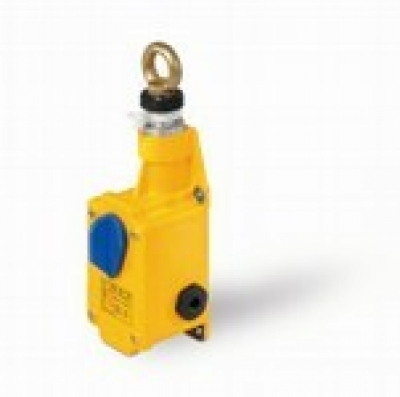

Kiepe PAS pull rope switch

Kiepe PAS pull rope switch One-directional actuating, Housing : PBT\r\n\r\n\r\nA p p l i c a t i o n\r\n\r\nKiepe Pull Rope Switches, type PAS are used in conveyor systems\r\nand processing machines. The conveyor or machine can be shut\r\ndown from all hazard points with one single PAS switch.\r\nThe maximum length of the rope is 30 m (see attached diagram).\r\nKiepe Pull Rope Switches and accessories meet the requirements\r\nof safety authorities with respect to personnel safety and\r\nequipment (BGI 710).\r\n\r\nT e c h n i c a l D a t a\r\n\r\nIn compliance\r\n\r\nO p e r a t i o n\r\n\r\nKiepe pull rope switches type PAS are actuated by pulling the rope\r\nor if the rope is broken or in slack condition. Both NC contacts are\r\nhence opened and the switch is mechanically latched.\r\nThe reset button indicates the actual switch status\r\n(ON/1 or OFF/0).\r\nThe conveyor can only be restarted if the mechanical latch has\r\nbeen released by means of the reset button.\r\n\r\nT e c h n i c a l D a t a\r\n\r\nIn compliance with the following standards\r\nand regulations\r\nEN 60947-5-1, EN ISO 13850\r\nVDE 0110 – degree of pollution: 2 (interior), 4 (exterior), BGI 710\r\nSuitable for Controls and equipment according to EN 60204\r\nEnclosure PBT\r\nFinish Enclosure: yellow (RAL 1004), reset button: blue (RAL 5010)\r\nMounting 4 holes for screws M6\r\nPermissible ambient temperature (VDE 0660) – 25 °C ^Tamb ^+ 70 °C\r\nSwitching system 1 changeover contact, 2 N.C.-contacts, all switching elements\r\npositive making and selfcleaning\r\nRated insulation voltage Ui 250 V\r\nConventional thermal current Ith 6 A\r\nBreaking capacity AC-15: AC 230 V / 1.5 A, DC-13: DC 60 V / 0.5 A, DC-13: DC 24 V / 2.0 A\r\nIP protection class IP 65/ IP 67 according to EN 60529\r\nMounting position Any\r\nCable entry Tapped hole for 3x M20 x 1.5\r\n1 x cable gland M20 x 1.5; sealing area n 6 - 12 mm\r\n2 x plug M20 x 1.5\r\nConnections max. 2.5 mm2\r\nActuating force approx. 190 N (pretensioning force approx. 110 N)\r\nWeight approx. 400 g\r\n\r\nOrdering code 91.057560.001
