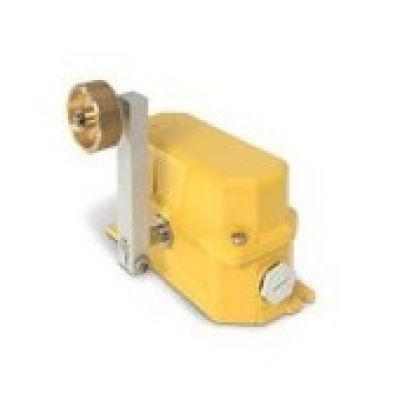

Kiepe HER Limit Switch

Kiepe HER Limit Switch

Kiepe HER Limit Switch

exc. VAT
inc. VAT
Kiepe HER Limit Switch\r\n\r\nHousing : Aluminum\r\n\r\nKiepe limit switch HER

Product Description

Kiepe HER Limit Switch Housing : Aluminum\r\n\r\nKiepe limit switch HER\r\n\r\n\r\na p p l i c a t i o n\r\n\r\nThe limit switch HER has been designed for a maximum of safe\r\noperation under severe conditions to become installed in any bulk\r\nhandling system. All external parts are either of stainless steel or\r\nhave been specially plated.\r\nThe trip points - both preset at 10° - can be changed within 5 and\r\n15° resp. 15 and 35° by means of adjustable cams.\r\nThe roller lever is continuosly adjustable on the shaft. For safety\r\napplications the lever has to be bolted with the shaft.\r\nThe positiv making and selfcleaning switching elements also\r\nqualify the switch to be used the classical relay circuits as well as\r\ncable signalling devices such as field buses.\r\n\r\nt e c h n i c a l d a t a\r\n\r\nDevice complies with EN 60947-5-1\r\nEN 60204\r\nVDE 0110 - Degree of Pollution 2\r\nEnclosure Aluminium alloy, GK-AlSi12\r\nActuating roller lever Roller: CuZn39Pb3, lever: AlMgSi1\r\nFinish 2-component DD -tile enamel yellow, RAL 1004\r\nFastening 2 oblong holes for M 8-bolts\r\nCable entry 2 x M 25 x 1,5\r\nProtection IP 67 according to EN 60529\r\nRated insulation voltage Ui AC 380 V, DC 250 V\r\nEarthing Within enclosure, M 5\r\nAdmissible ambient temperature 1) - 25 °C … + 70 °C\r\nSwitching elements Snap acting switches, positive making and self cleaning\r\nNumber of contacts 2 changeover contacts SPDT\r\nConventional thermal current Ith 10 A\r\nBreaking capacity Ie / Ue 4 A / AC 230 V\r\nConnections 2,5 mm2\r\nMechanical life 0,5 x 106 switching cycles\r\nExcursion 75° max.\r\nMaintenance Free\r\nOrdering code 92.057.020.606\r\n1) Deviating ambient temperature upon request\r\nNote: The devices may be used in control circuits only!
